Lorenz Model Chaos Simulation
1. Lorenz Model Overview
The Lorenz model is a set of differential equations used to simulate chaotic systems, displaying the phenomenon known as "sensitivity to initial conditions," a key characteristic of chaos. This model is widely recognized for its chaotic, butterfly-shaped attractor and is often used to demonstrate how small changes in initial conditions can lead to vastly different outcomes over time.
2. Model Equations

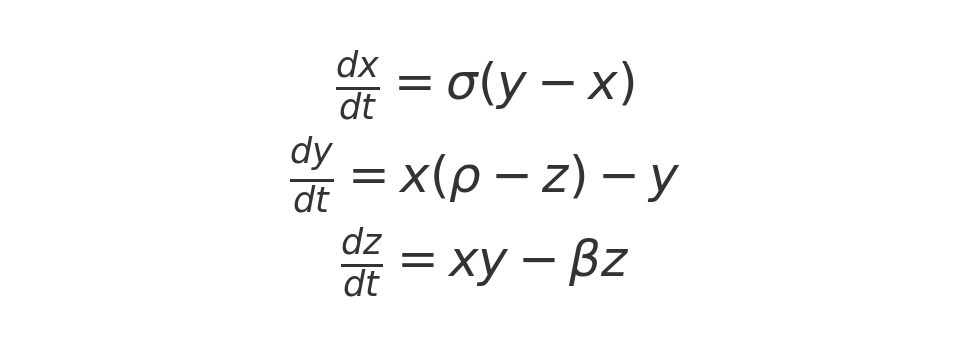

The Lorenz system is defined by three differential equations:
where:
- x, y, z are the state variables,
- σ\sigmaσ, ρ\rhoρ, and β\betaβ are parameters that control the system's dynamics.
3. Model Parameters
In this simulation, the Lorenz system is configured with the following parameters, which are known to induce chaotic behavior:
- σ: 10.0
- ρ: 28.0
- β: 8/3
4. Simulation Setup
- Initial Conditions:
- Initial State 1: [1.0,1.0,1.0]
- Initial State 2: [1.001,1.001,1.001]
- These two initial states differ by only a very small amount to illustrate the sensitivity to initial conditions.
- Time Range: 0 to 40 (simulated over 10,000 time steps)
5. Simulation Results
5.1. 3D Lorenz Attractor Visualization

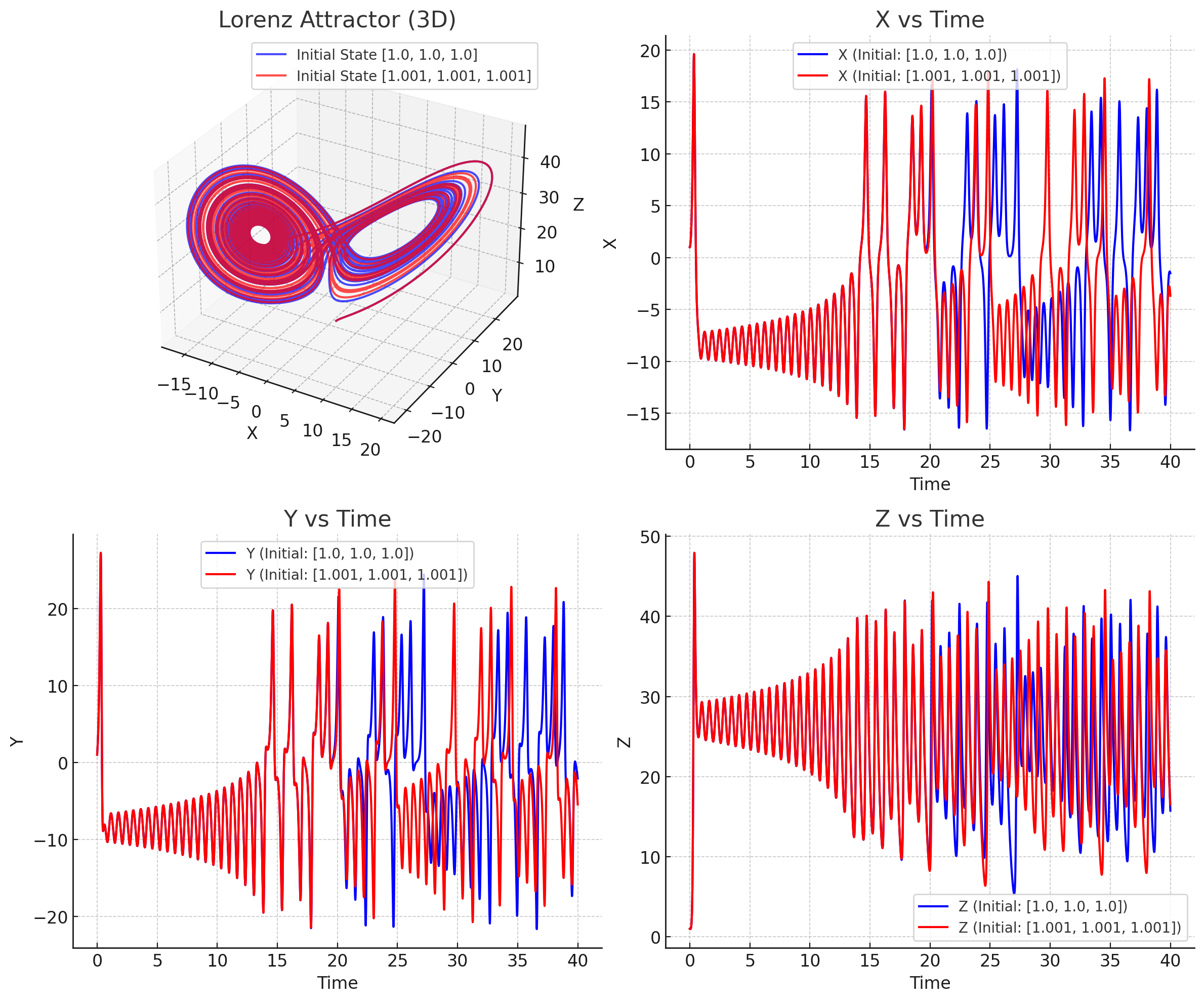

The following plot shows the evolution of the Lorenz attractor with both initial conditions:
- Blue Line: Trajectory starting from [1.0,1.0,1.0][1.0, 1.0, 1.0][1.0,1.0,1.0]
- Red Line: Trajectory starting from [1.001,1.001,1.001][1.001, 1.001, 1.001][1.001,1.001,1.001]
Despite the tiny difference in starting points, the trajectories diverge significantly over time, illustrating the chaotic behavior and "butterfly effect."
5.2. Time Series Plots for X, Y, Z
The time series for each variable (X, Y, Z) over time are plotted to further visualize the divergence:
- Each subplot (X, Y, Z) shows how the values evolve from each initial condition.
- As time progresses, the red and blue trajectories separate more visibly, demonstrating how a small initial change leads to distinct long-term outcomes.
6. Sensitivity to Initial Conditions
